768772222

768772222

Part Number768772222

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 2.2MH 320MA 4.73 OHM

Datasheet768772222

Package / CaseRadial, Vertical Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

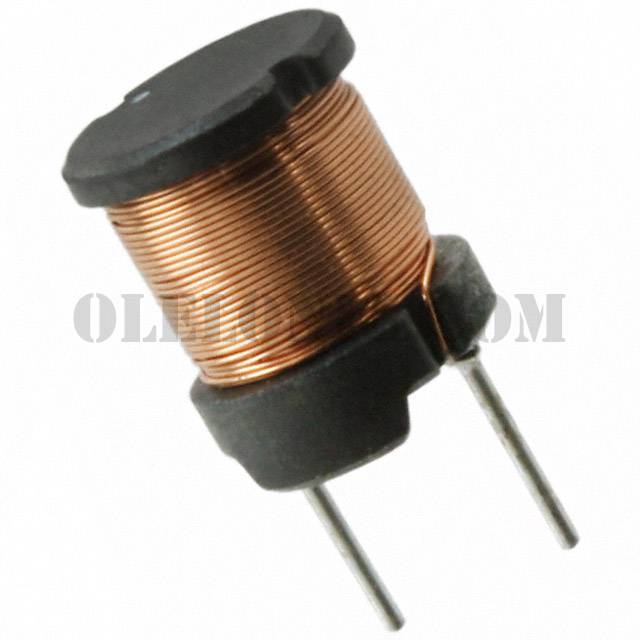

Detailed Description2.2mH Unshielded Wirewound Inductor 320mA 4.73Ohm Max Radial, Vertical Cylinder (Open)

To learn about the specification of 768772222, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 768772222 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 768772222.
We are offering 768772222 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

768772222 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	768772222
Standard Package	140
Manufacturer	Wurth Electronics Inc.
Series	WE-TI HV
Packaging	Tray
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2mH
Tolerance	±10%
Current Rating (Amps)	320mA
Current - Saturation	320mA
Shielding	Unshielded
DC Resistance (DCR)	4.73Ohm Max
Q @ Freq	-
Frequency - Self Resonant	1.2MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.307" Dia (7.80mm)
Height - Seated (Max)	0.394" (10.00mm)

768772222 - Related Products

	768772152	Wurth Electronics Inc., 1.5mH Unshielded Wirewound Inductor 380mA 3Ohm Max Radial, Vertical Cylinder (Open), WE-TI HV	View
	768772182	Wurth Electronics Inc., 1.8mH Unshielded Wirewound Inductor 350mA 3.3Ohm Max Radial, Vertical Cylinder (Open), WE-TI HV	View
	768772122	Wurth Electronics Inc., 1.2mH Unshielded Wirewound Inductor 400mA 2.64Ohm Max Radial, Vertical Cylinder (Open), WE-TI HV	View
	768772222	Wurth Electronics Inc., 2.2mH Unshielded Wirewound Inductor 320mA 4.73Ohm Max Radial, Vertical Cylinder (Open), WE-TI HV	View
	768772821	Wurth Electronics Inc., 820µH Unshielded Wirewound Inductor 500mA 1.92Ohm Max Radial, Vertical Cylinder (Open), WE-TI HV	View
	768772102	Wurth Electronics Inc., 1mH Unshielded Wirewound Inductor 500mA 2.08Ohm Max Radial, Vertical Cylinder (Open), WE-TI HV	View
