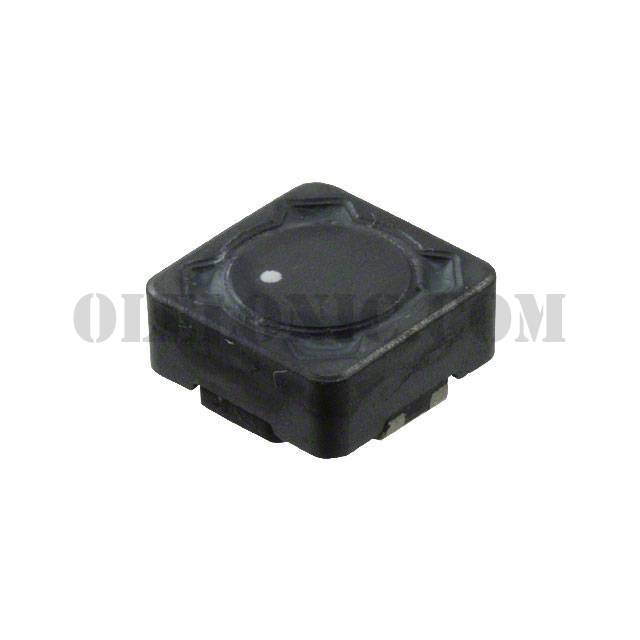

744878004

Part Number744878004

ManufacturerWurth Electronics Inc.

DescriptionINDUCT ARRAY 2 COIL 4.7UH SMD

Datasheet744878004

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 18.8µH Inductance - Connected in Series 4.7µH Inductance - Connected in Parallel 75mOhm Max DC Resistance (DCR) - Parallel 1.3A Nonstandard

To learn about the specification of 744878004, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744878004 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744878004.
We are offering 744878004 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744878004 - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	744878004
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-DD
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	4.7µH
Inductance - Connected In Series	18.8µH
Tolerance	±20%
Current Rating - Parallel	1.3A
Current Rating - Series	650mA
Current Saturation - Parallel	3A
Current Saturation - Series	1.5A
DC Resistance (DCR) - Parallel	75mOhm Max
DC Resistance (DCR) - Series	-
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height	0.157" (4.00mm)
