7448030509
7448030509

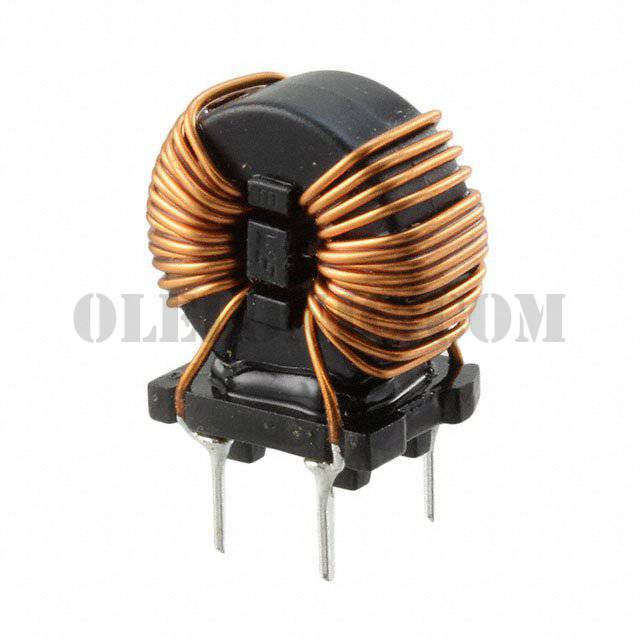

Part Number 7448030509 Description COMMON MODE CHOKE 9MH 5A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 9mH @ 10kHz 2 Line Common Mode Choke Through Hole 5A DCR 28mOhm
To learn about the specification of 7448030509, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7448030509 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7448030509.
We are offering 7448030509 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
7448030509 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 7448030509 Drawing Standard Package 90 Manufacturer Wurth Electronics Inc. Series WE-CMBNC Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 9mH @ 10kHz Current Rating (Max) 5A DC Resistance (DCR) (Max) 28mOhm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.866" L x 0.531" W (22.00mm x 13.50mm) Height (Max) 0.984" (25.00mm) Package / Case Vertical, 4 PC Pin
7448030509 - Related ProductsMore >>
7448060535 Wurth Electronics Inc., 35mH @ 10kHz 2 Line Common Mode Choke Through Hole 5A DCR 90mOhm, WE-CMBNC
View
7448040435 Wurth Electronics Inc., 35mH @ 10kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 80mOhm, WE-CMBNC
View
7448051012 Wurth Electronics Inc., 12mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 15mOhm, WE-CMBNC
View
7448052502 Wurth Electronics Inc., 2.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 25A DCR 2.2mOhm, WE-CMBNC
View
7448031002 Wurth Electronics Inc., 2mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 6mOhm, WE-CMBNC
View
7448021230 Wurth Electronics Inc., 30mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 280mOhm, WE-CMBNC
View
7448061507 Wurth Electronics Inc., 7mH @ 10kHz 2 Line Common Mode Choke Through Hole 15A DCR 9.5mOhm, WE-CMBNC
View
7448060620 Wurth Electronics Inc., 20mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 45mOhm, WE-CMBNC
View
7448020680 Wurth Electronics Inc., 80mH @ 10kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1Ohm, WE-CMBNC
View
7448022010 Wurth Electronics Inc., 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 85mOhm, WE-CMBNC
View
7448051804 Wurth Electronics Inc., 4.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 18A DCR 4.2mOhm, WE-CMBNC
View
7448041801 Wurth Electronics Inc., 1.5mH @ 10kHz 2 Line Common Mode Choke Through Hole 18A DCR 3.2mOhm, WE-CMBNC
View
