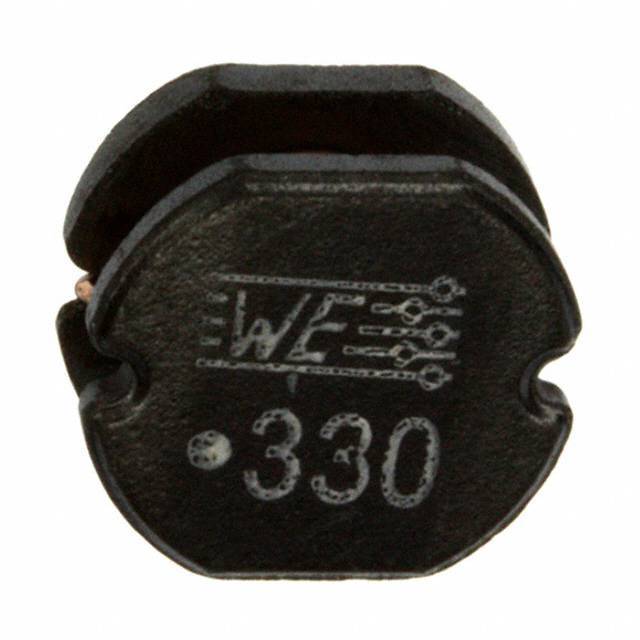

Part Number744776133

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744776133 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-PD2
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance33µH
Tolerance±20%
Current Rating (Amps)1.78A
Current - Saturation1.89A
ShieldingUnshielded
DC Resistance (DCR)120mOhm Max
Q @ Freq-
Frequency - Self Resonant13MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test10kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max)0.232" (5.90mm)
