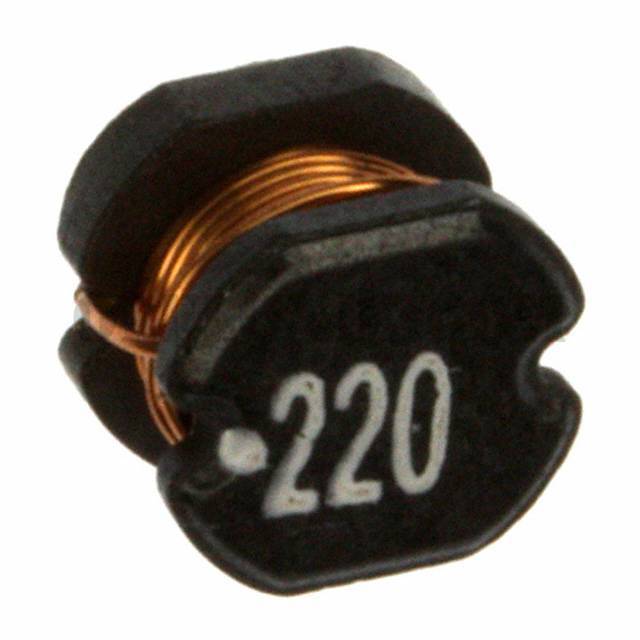

Part Number744774122

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744774122 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1500
ManufacturerWurth Electronics Inc.
SeriesWE-PD2
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±20%
Current Rating (Amps)1.28A
Current - Saturation1.53A
ShieldingUnshielded
DC Resistance (DCR)180mOhm Max
Q @ Freq-
Frequency - Self Resonant16MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test10kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)0.191" (4.85mm)
