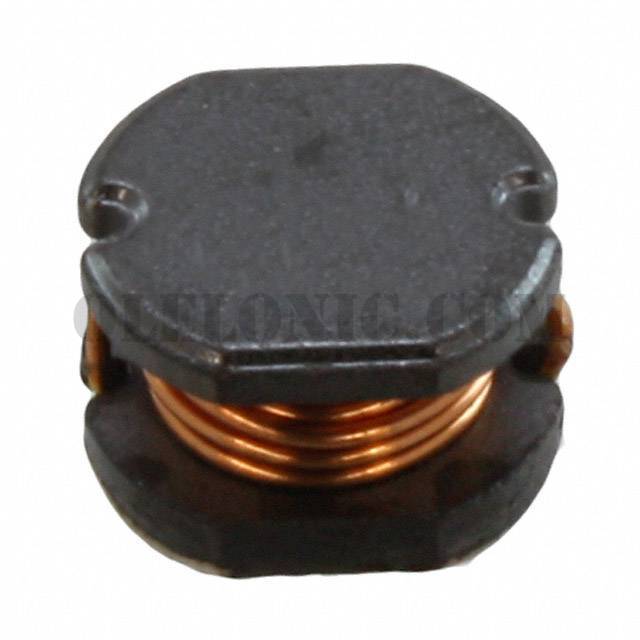

744775122


744775122

Part Number744775122

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744775122 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-PD2
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±10%
Current Rating (Amps)1.76A
Current - Saturation1.81A
ShieldingUnshielded
DC Resistance (DCR)110mOhm Max
Q @ Freq-
Frequency - Self Resonant17.5MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test10kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)0.217" (5.50mm)
