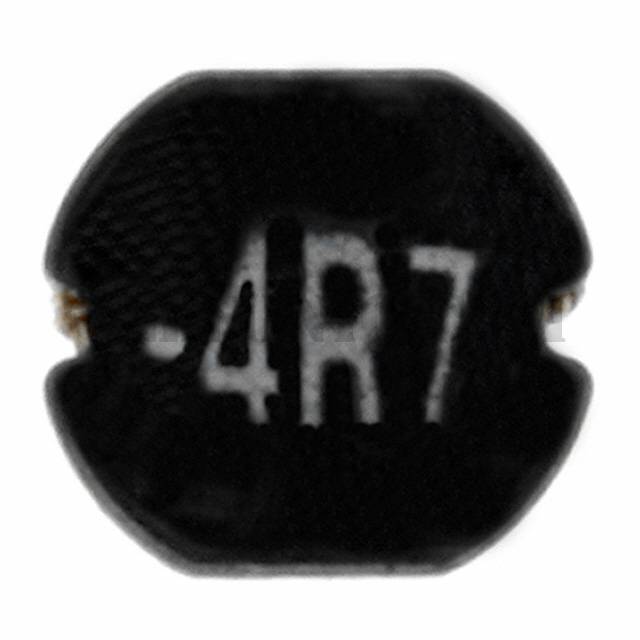

7447745047


7447745047

Part Number7447745047

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447745047 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-PD2
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance4.7µH
Tolerance±20%
Current Rating (Amps)2.5A
Current - Saturation2.4A
ShieldingUnshielded
DC Resistance (DCR)65mOhm Max
Q @ Freq-
Frequency - Self Resonant42MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)0.091" (2.30mm)
