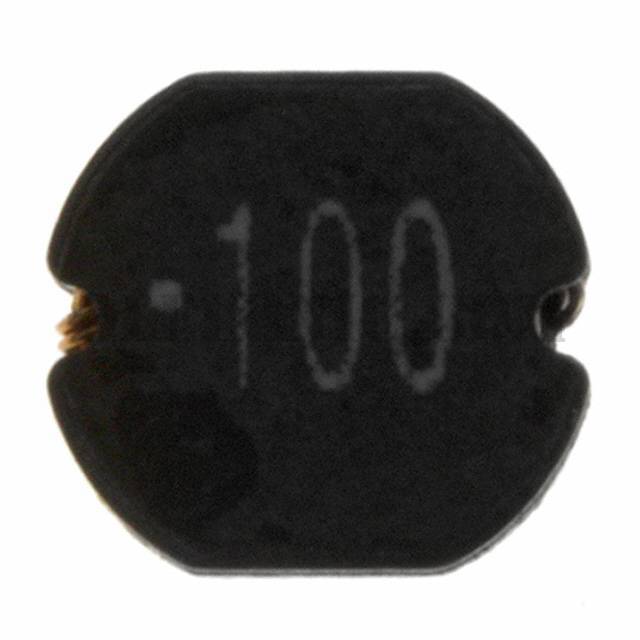

7447745100
7447745100
Part Number 7447745100
Description FIXED IND 10UH 1.7A 130 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 10µH Unshielded Wirewound Inductor 1.7A 130mOhm Max Nonstandard
To learn about the specification of 7447745100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7447745100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7447745100.
We are offering 7447745100 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
7447745100 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 7447745100
Standard Package 1
Manufacturer Wurth Electronics Inc.
Series WE-PD2
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10µH
Tolerance ±20%
Current Rating (Amps) 1.7A
Current - Saturation 1.6A
Shielding Unshielded
DC Resistance (DCR) 130mOhm Max
Q @ Freq -
Frequency - Self Resonant 28MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.091" (2.30mm)
