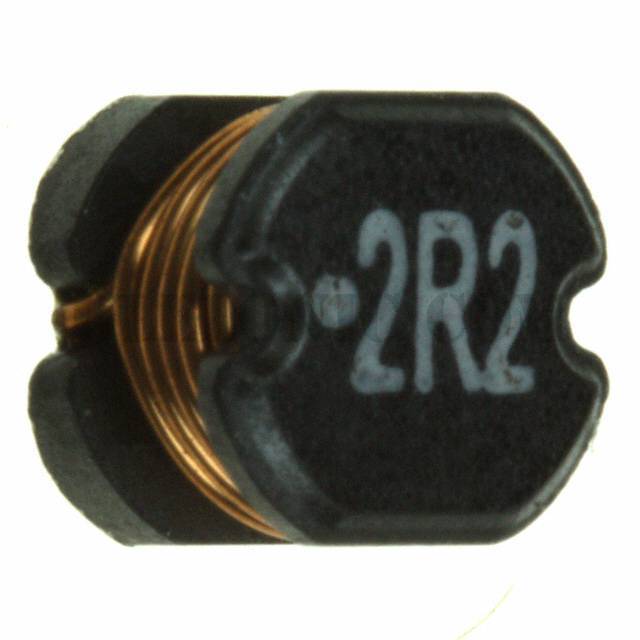

744774022
744774022
Part Number 744774022
Description FIXED IND 2.2UH 4.6A 41 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 2.2µH Unshielded Wirewound Inductor 4.6A 41mOhm Max Nonstandard
To learn about the specification of 744774022, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744774022 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744774022.
We are offering 744774022 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744774022 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 744774022
Standard Package 1500
Manufacturer Wurth Electronics Inc.
Series WE-PD2
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2µH
Tolerance ±20%
Current Rating (Amps) 4.6A
Current - Saturation 8.2A
Shielding Unshielded
DC Resistance (DCR) 41mOhm Max
Q @ Freq -
Frequency - Self Resonant 54MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.191" (4.85mm)
