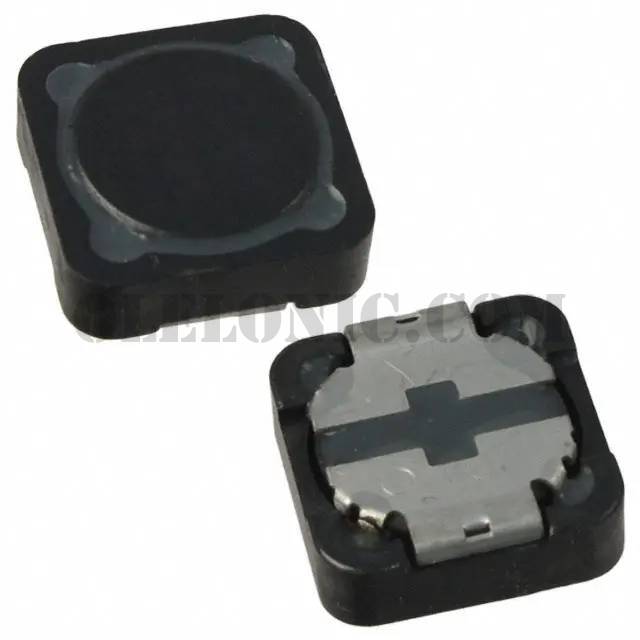

7447715100
7447715100
Part Number 7447715100
Description FIXED IND 10UH 3.8A 30 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 10µH Shielded Wirewound Inductor 3.8A 30mOhm Max Nonstandard
To learn about the specification of 7447715100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 7447715100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 7447715100.
We are offering 7447715100 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
7447715100 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 7447715100
Standard Package 500
Manufacturer Wurth Electronics Inc.
Series WE-PD
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10µH
Tolerance ±20%
Current Rating (Amps) 3.8A
Current - Saturation 4.2A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Q @ Freq -
Frequency - Self Resonant 22MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.177" (4.50mm)
