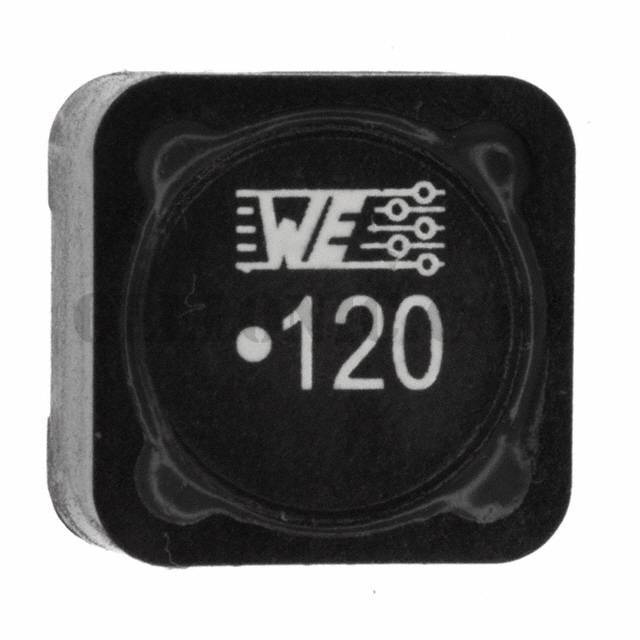

744770112


744770112

Part Number744770112

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744770112 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-PD
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance12µH
Tolerance±20%
Current Rating (Amps)5.9A
Current - Saturation6.3A
ShieldingShielded
DC Resistance (DCR)24mOhm Max
Q @ Freq-
Frequency - Self Resonant16MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)0.315" (8.00mm)
