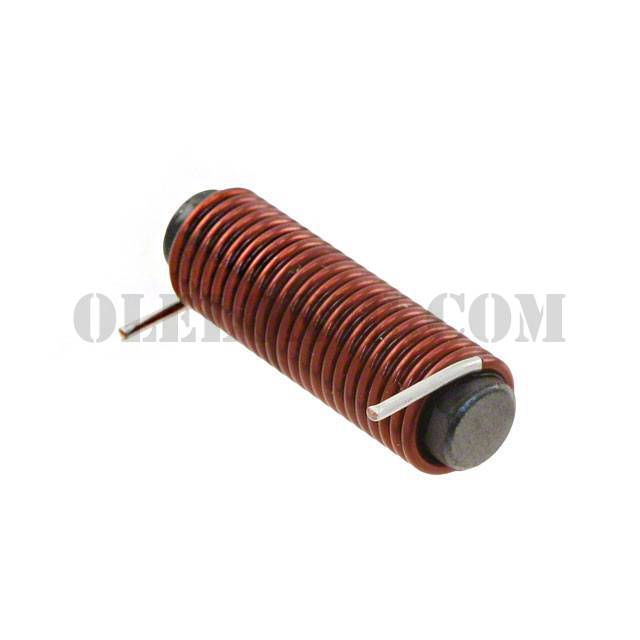

744711005

744711005

Part Number744711005

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 10UH 5A 15.1 MOHM TH

Datasheet744711005

Package / CaseRadial, Horizontal Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Unshielded Wirewound Inductor 5A 15.1mOhm Radial, Horizontal Cylinder (Open)

To learn about the specification of 744711005, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744711005 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744711005.
We are offering 744711005 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744711005 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	744711005
Standard Package	400
Manufacturer	Wurth Electronics Inc.
Series	WE-SD
Packaging	Tray
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±25%
Current Rating (Amps)	5A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	15.1mOhm
Q @ Freq	-
Frequency - Self Resonant	50MHz
Ratings	-
Operating Temperature	-40°C ~ 150°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Horizontal Cylinder (Open)
Supplier Device Package	-
Size / Dimension	0.272" Dia x 0.886" L (6.90mm x 22.50mm)
Height - Seated (Max)	-
