7445720


7445720

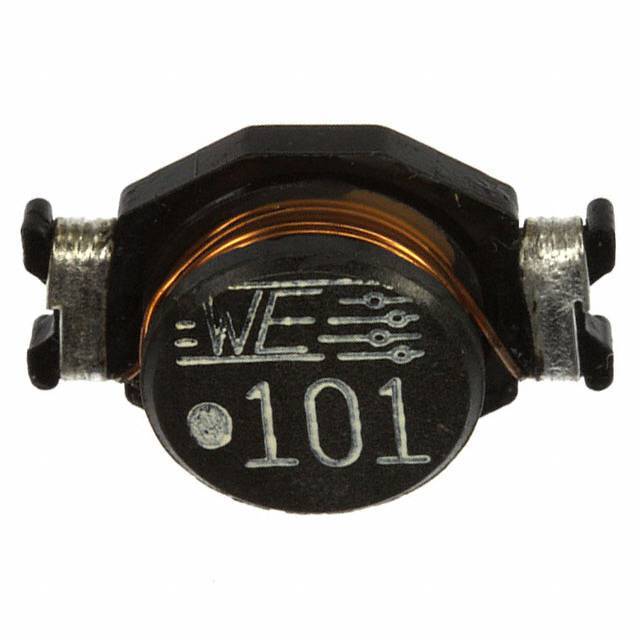

Part Number7445720

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7445720 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package250
ManufacturerWurth Electronics Inc.
SeriesWE-PD4
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100µH
Tolerance±10%
Current Rating (Amps)2A
Current - Saturation3A
ShieldingUnshielded
DC Resistance (DCR)202mOhm Max
Q @ Freq-
Frequency - Self Resonant6.5MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max)0.307" (7.80mm)
