744314200


744314200

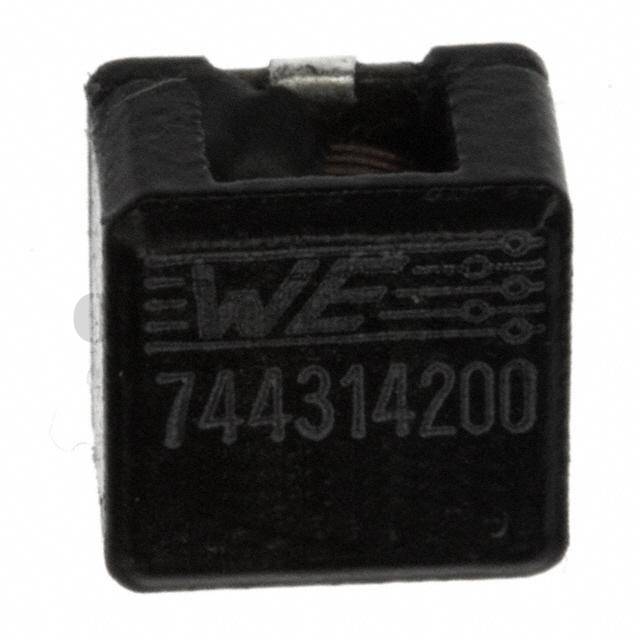

Part Number744314200

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744314200 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerWurth Electronics Inc.
SeriesWE-HCI
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - Core-
Inductance2µH
Tolerance±20%
Current Rating (Amps)11.5A
Current - Saturation9A
ShieldingShielded
DC Resistance (DCR)5.85mOhm
Q @ Freq-
Frequency - Self Resonant68MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 150°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package7050
Size / Dimension0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max)0.197" (5.00mm)
