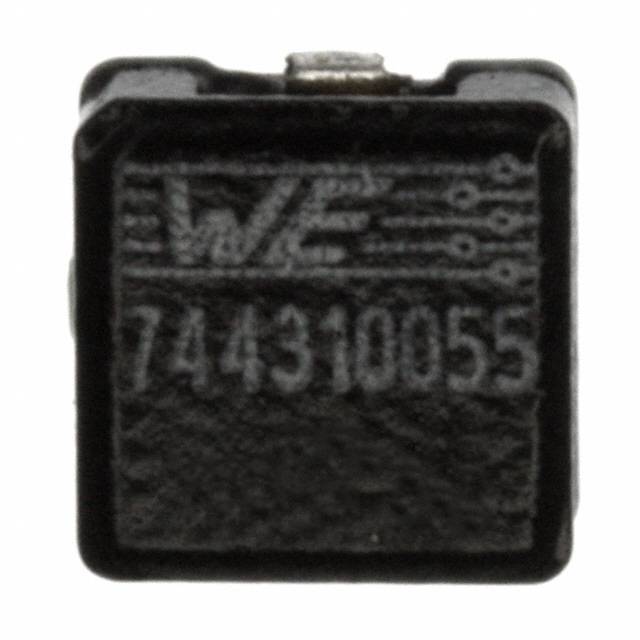

Part Number 744310055
Description FIXED IND 520NH 14A 3.7 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 520nH Shielded Wirewound Inductor 14A 3.7mOhm Nonstandard
To learn about the specification of 744310055, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744310055 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744310055.
We are offering 744310055 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744310055 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet 744310055
Standard Package 1500
Manufacturer Wurth Electronics Inc.
Series WE-HCI
Packaging Tape & Reel (TR)
Part Status Active
Type Wirewound
Material - Core -
Inductance 520nH
Tolerance ±20%
Current Rating (Amps) 14A
Current - Saturation 20A
Shielding Shielded
DC Resistance (DCR) 3.7mOhm
Q @ Freq -
Frequency - Self Resonant 140MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 150°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 7030
Size / Dimension 0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max) 0.130" (3.30mm)
