744314150


744314150

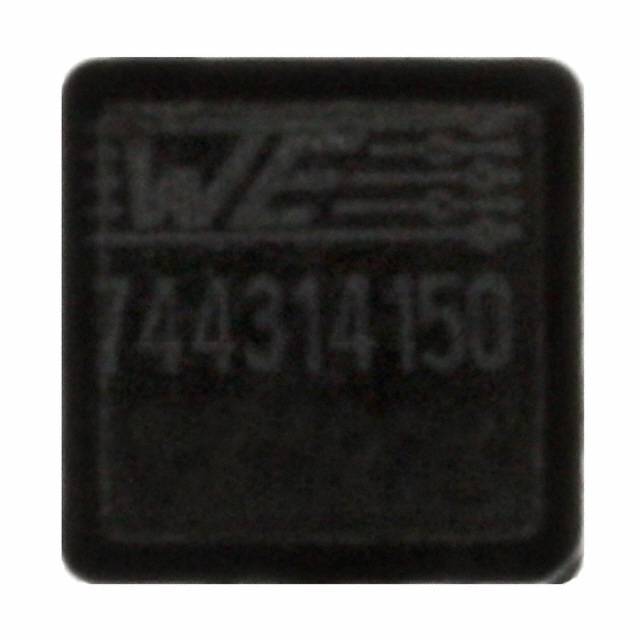

Part Number744314150

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744314150 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerWurth Electronics Inc.
SeriesWE-HCI
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - Core-
Inductance1.5µH
Tolerance±20%
Current Rating (Amps)13A
Current - Saturation11A
ShieldingShielded
DC Resistance (DCR)4.3mOhm
Q @ Freq-
Frequency - Self Resonant110MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 150°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package7050
Size / Dimension0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max)0.197" (5.00mm)
