Home/Product Catalog/Resistors / Chip Resistor - Surface Mount/  73L7R56J

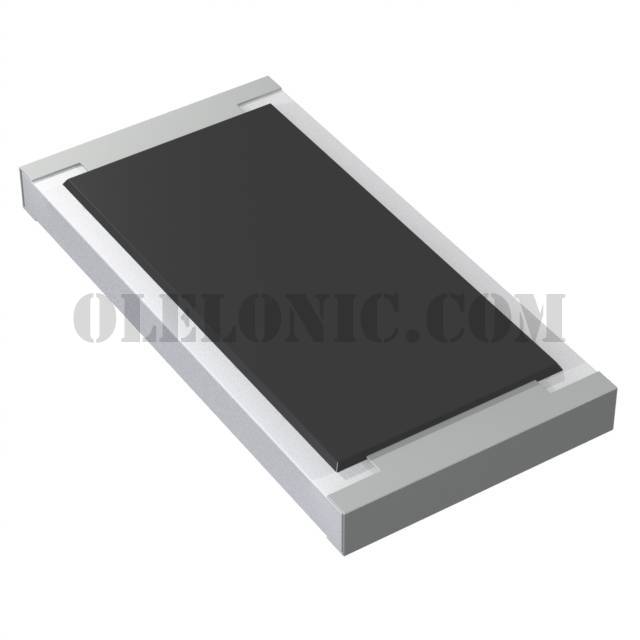

73L7R56J


73L7R56J

Part Number73L7R56J

Manufacturer

Description

Datasheet

Package / Case2512 (6432 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

73L7R56J - Product Attributes

Categories Resistors / Chip Resistor - Surface Mount
Datasheet
Standard Package1
ManufacturerCTS Resistor Products
Series73L7
PackagingCut Tape (CT)
Part StatusActive
Resistance560 mOhms
Tolerance±5%
Power (Watts)1W
CompositionThick Film
FeaturesCurrent Sense
Temperature Coefficient±200ppm/°C
Operating Temperature-55°C ~ 125°C
Package / Case2512 (6432 Metric)
Supplier Device Package2512
Size / Dimension0.248" L x 0.126" W (6.30mm x 3.20mm)
Height - Seated (Max)0.028" (0.71mm)
Number of Terminations2
Failure Rate-
