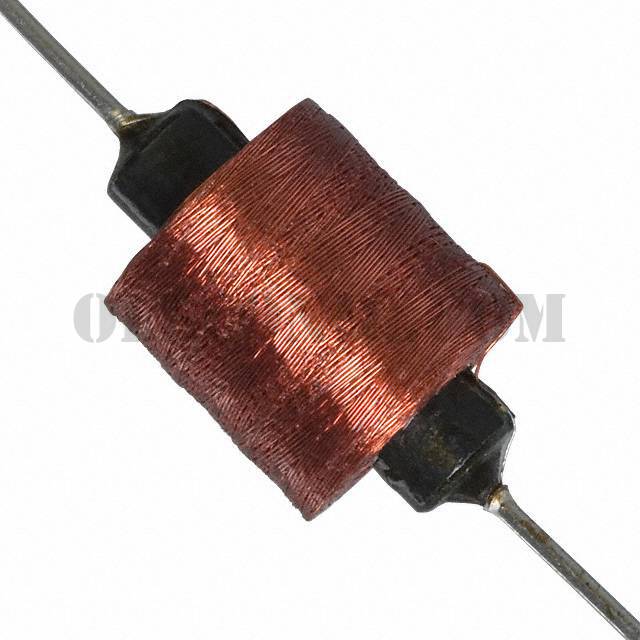

70F101AF-RC


70F101AF-RC

Part Number70F101AF-RC

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

70F101AF-RC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package600
ManufacturerBourns Inc.
Series70F
PackagingBulk
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100mH
Tolerance±5%
Current Rating (Amps)29mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)278Ohm Max
Q @ Freq48 @ 79kHz
Frequency - Self Resonant157kHz
Ratings-
Operating Temperature-55°C ~ 105°C
Inductance Frequency - Test79kHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
Size / Dimension0.440" Dia x 0.630" L (11.18mm x 16.00mm)
Height - Seated (Max)-
Base Part Number70F
