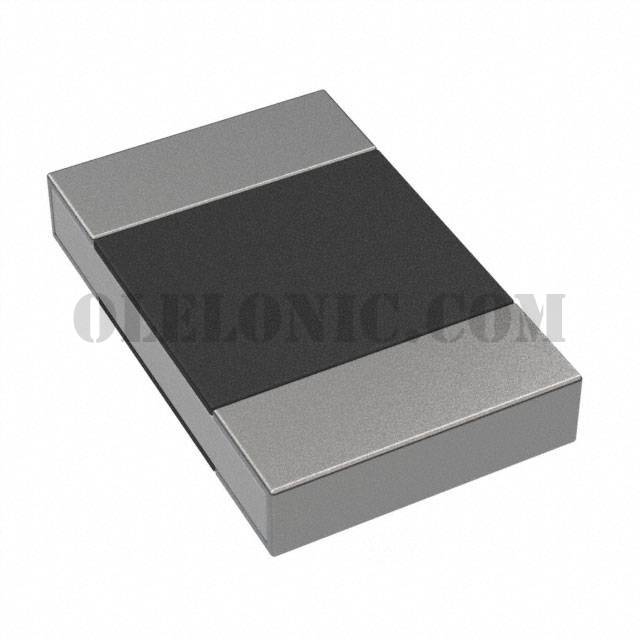

580060763005

580060763005

Part Number580060763005

ManufacturerWurth Electronics Inc.

DescriptionRES 0.007 OHM 1% 1W 2512

Datasheet580060763005 Drawing

Package / Case2512 (6432 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description7 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Current Sense Thick Film

To learn about the specification of 580060763005, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 580060763005 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 580060763005.
We are offering 580060763005 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

580060763005 - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	580060763005 Drawing
Standard Package	4000
Manufacturer	Wurth Electronics Inc.
Series	WRIS-PSMB
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	7 mOhms
Tolerance	±1%
Power (Watts)	1W
Composition	Thick Film
Features	Current Sense
Temperature Coefficient	100ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	2512 (6432 Metric)
Supplier Device Package	2512
Size / Dimension	0.248" L x 0.122" W (6.30mm x 3.10mm)
Height - Seated (Max)	0.020" (0.50mm)
Number of Terminations	2
