Categories	Capacitors / Ceramic Capacitors
Datasheet	561R, 562R, 565R Series
Standard Package	500
Manufacturer	Vishay Cera-Mite
Series	Cera-Mite 562R
Packaging	Bulk
Part Status	Active
Capacitance	2000pF
Tolerance	±20%
Voltage - Rated	1000V (1kV)
Temperature Coefficient	Z5U
Operating Temperature	-55°C ~ 105°C
Features	-
Ratings	-
Applications	General Purpose
Failure Rate	-
Mounting Type	Through Hole

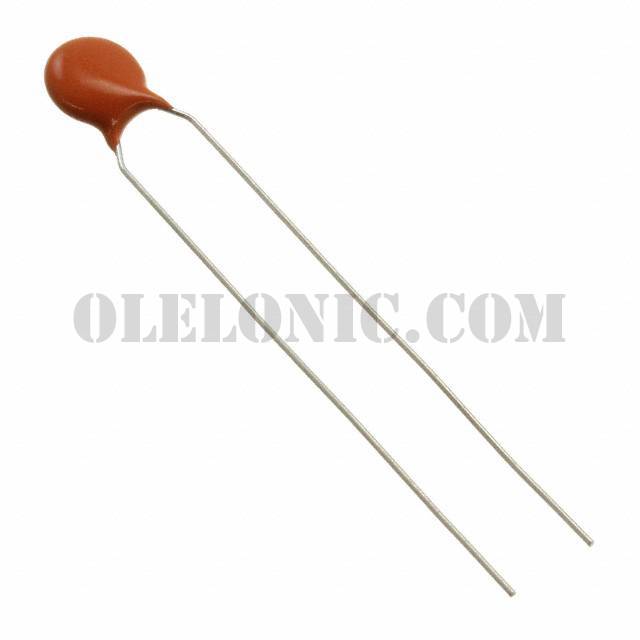

Package / Case	Radial, Disc
Size / Dimension	0.291" Dia (7.40mm)
Height - Seated (Max)	0.417" (10.58mm)
Thickness (Max)	-
Lead Spacing	0.252" (6.40mm)
Lead Style	Straight

562R10TST15	Vishay Cera-Mite, 150pF ±10% 1000V (1kV) Ceramic Capacitor X5F Radial, Disc, Cera-Mite 562R	View
562R5TSD10	Vishay Cera-Mite, 1000pF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial, Disc, Cera-Mite 562R	View
562R10TSQ56	Vishay Cera-Mite, 56pF ±10% 1000V (1kV) Ceramic Capacitor X5F Radial, Disc, Cera-Mite 562R	View
562R5GAD20	Vishay Cera-Mite, 2000pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc, Cera-Mite 562R	View
562R5GAD15	Vishay Cera-Mite, 1500pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc, Cera-Mite 562R	View
562R5GAT10	Vishay Cera-Mite, 100pF ±20% 1000V (1kV) Ceramic Capacitor X5F Radial, Disc, Cera-Mite 562R	View
562R10TST47	Vishay Cera-Mite, 470pF ±10% 1000V (1kV) Ceramic Capacitor X5F Radial, Disc, Cera-Mite 562R	View
562R5GAD33	Vishay Cera-Mite, 3300pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc, Cera-Mite 562R	View
562R5GAD50	Vishay Cera-Mite, 5000pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc, Cera-Mite 562R	View
562R10TST25	Vishay Cera-Mite, 250pF ±10% 1000V (1kV) Ceramic Capacitor X5F Radial, Disc, Cera-Mite 562R	View
562R5GAD10	Vishay Cera-Mite, 1000pF ±20% 1000V (1kV) Ceramic Capacitor X7R Radial, Disc, Cera-Mite 562R	View
562R5GAD22	Vishay Cera-Mite, 2200pF ±20% 1000V (1kV) Ceramic Capacitor Z5U Radial, Disc, Cera-Mite 562R	View

562R5GAD20

Part Number562R5GAD20
