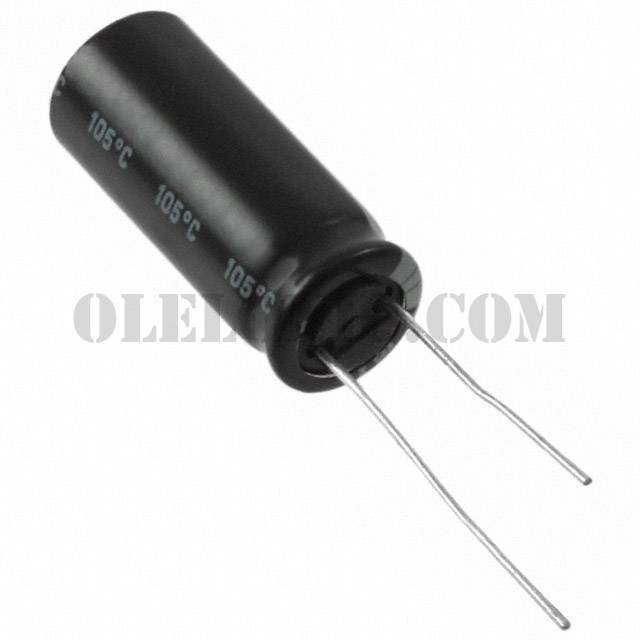

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	500
Manufacturer	Rubycon
Series	ZLJ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.331A @ 120Hz
Ripple Current @ High Frequency	2.42A @ 100kHz
Impedance	32 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25ZLJ330M8X11.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View
100ZLJ270MGC16X20	Rubycon, 270µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
6.3ZLJ470M6.3X11	Rubycon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLJ	View
50ZLJ680M12.5X25	Rubycon, 680µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ56MT16.3X11	Rubycon, 56µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, ZLJ	View
35ZLJ47MTA5X11	Rubycon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, ZLJ	View
80ZLJ180M10X25	Rubycon, 180µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
16ZLJ2200M12.5X20	Rubycon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
6.3ZLJ820M8X11.5	Rubycon, 820µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLJ	View
50ZLJ120MTA8X16	Rubycon, 120µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
25ZLJ390M8X16	Rubycon, 390µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
35ZLJ180M8X11.5	Rubycon, 180µF 35V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View

50ZLJ390MT810X25

Part Number50ZLJ390MT810X25
