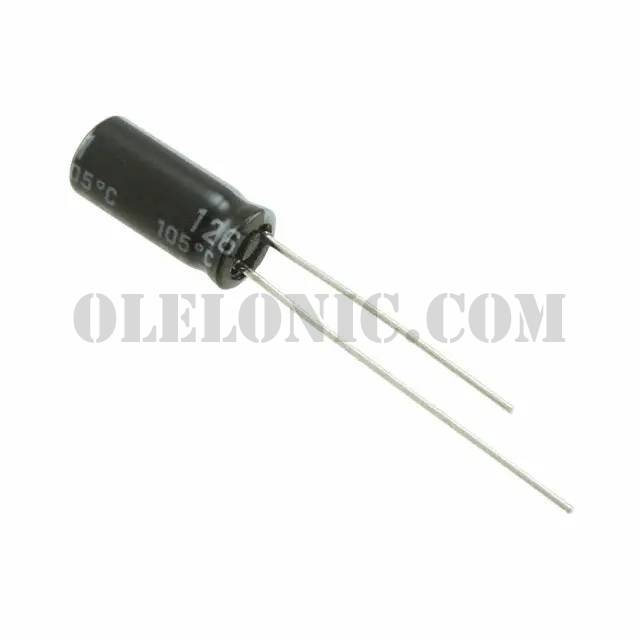

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	1
Manufacturer	Rubycon
Series	ZLJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	225mA @ 120Hz
Ripple Current @ High Frequency	450mA @ 100kHz
Impedance	400 mOhms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
