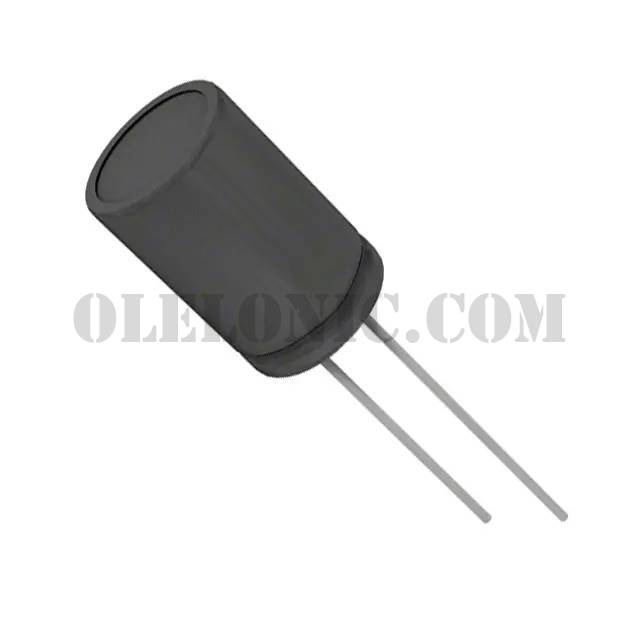

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXJ Series
Standard Package	1000
Manufacturer	Rubycon
Series	YXJ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	388.5mA @ 120Hz
Ripple Current @ High Frequency	555mA @ 100kHz
Impedance	170 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

35YXJ100MT16.3X11	Rubycon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
63YXJ100M10X12.5	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
63YXJ22M5X11	Rubycon, 22µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
25YXJ47MTA5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXJ	View
50YXJ47M6.3X11	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
50YXJ470M12.5X20	Rubycon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
35YXJ220MCA8X11.5	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXJ	View
10YXJ1000M10X12.5	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, YXJ	View
50YXJ1000M16X25	Rubycon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
50YXJ2200M16X35.5	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
16YXJ1000MT810X16	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View
25YXJ470M10X12.5	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXJ	View

50YXJ100MT78X11.5

Part Number50YXJ100MT78X11.5
