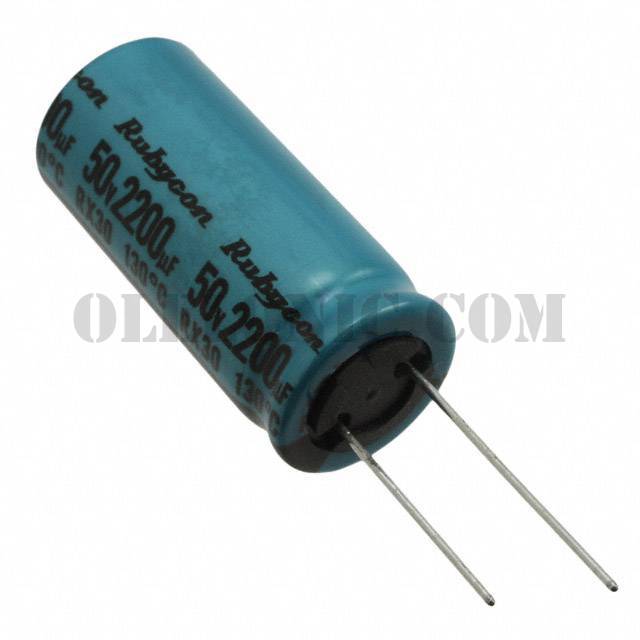

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	200
Manufacturer	Rubycon
Series	RX30
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	4000 Hrs @ 130°C
Operating Temperature	-40°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	2.24A @ 120Hz
Ripple Current @ High Frequency	2.8A @ 100kHz
Impedance	29 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
