Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	1000
Manufacturer	Rubycon
Series	RX30
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 130°C
Operating Temperature	-40°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	465mA @ 120Hz
Impedance	150 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63RX3047M10X12.5	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
35RX302200M16X35.5	Rubycon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
100RX3022M8X11.5	Rubycon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
10RX302200MCE12.5X25	Rubycon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
63RX30220MG412.5X20	Rubycon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
63RX30220MG412.5X20	Rubycon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
35RX303300M18X35.5	Rubycon, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C, RX30	View
50RX3047M8X11.5	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
200RX304.7M6.3X11	Rubycon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 130°C, RX30	View
100RX3047M10X16	Rubycon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
200RX306.8M8X16	Rubycon, 6.8µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View

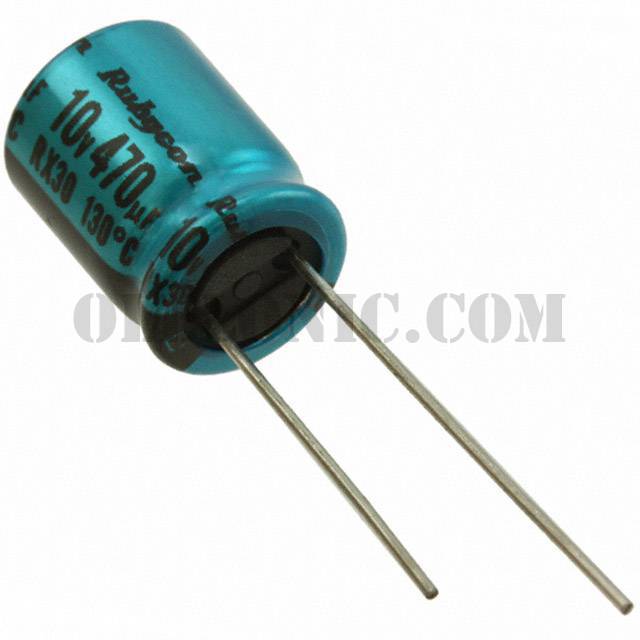

10RX30470M10X12.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View

10RX30470M10X12.5

Part Number10RX30470M10X12.5
