Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LLE Series
Standard Package	600
Manufacturer	Rubycon
Series	LLE
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	292mA @ 120Hz
Ripple Current @ High Frequency	730mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

160LLE33MEFC10X16	Rubycon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
400LLE3R3MEFC8X11.5	Rubycon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
450LLE22MEFC16X20	Rubycon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
160LLE22MEFC10X12.5	Rubycon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
160LLE10MEFC8X9	Rubycon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
200LLE4R7MEFC6.3X11	Rubycon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
400LLE3.9MEFC10X12.5	Rubycon, 3.9µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
450LLE8.2MEFC10X20	Rubycon, 8.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
400LLE2R7MEFC8X11.5	Rubycon, 2.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
400LLE1MEFC6.3X11	Rubycon, 1µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
200LLE12MEFC10X9	Rubycon, 12µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
200LLE18MEFC10X12.5	Rubycon, 18µF 200V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View

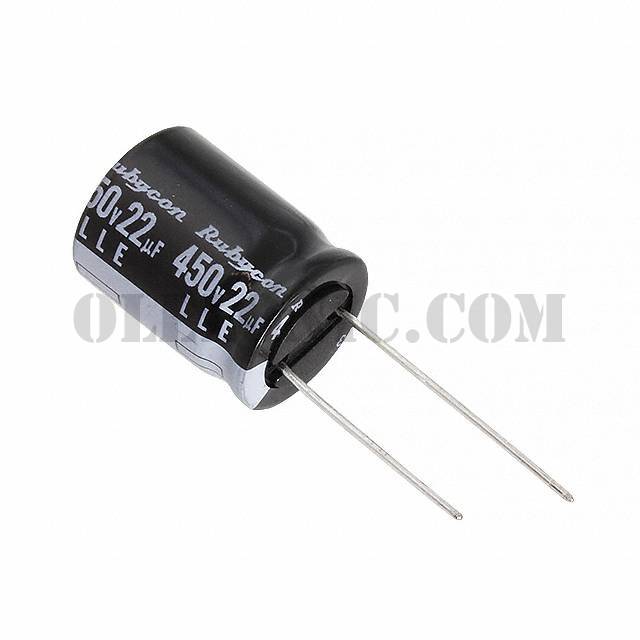

450LLE22MEFC16X20

Part Number450LLE22MEFC16X20
