Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LLE Series
Standard Package	1000
Manufacturer	Rubycon
Series	LLE
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	20000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	135mA @ 120Hz
Ripple Current @ High Frequency	450mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

200LLE4R7MEFC6.3X11	Rubycon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
400LLE1R2MEFC8X9	Rubycon, 1.2µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
160LLE22MEFC10X12.5	Rubycon, 22µF 160V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
400LLE6R8MEFC10X16	Rubycon, 6.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
200LLE2R2MEFC6.3X11	Rubycon, 2.2µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
250LLE8.2MEFC10X9	Rubycon, 8.2µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
160LLE15MEFC10X9	Rubycon, 15µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
250LLE3.3MEFC6.3X11	Rubycon, 3.3µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
450LLE47MEFC18X25	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View
400LLE1R8MEFC8X9	Rubycon, 1.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, LLE	View
400LLE3.9MEFC10X12.5	Rubycon, 3.9µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, LLE	View
450LLE15MEFC12.5X25	Rubycon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, LLE	View

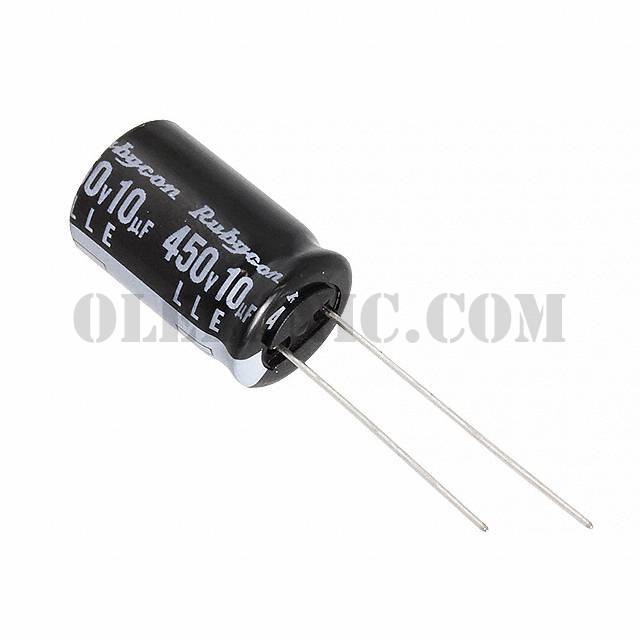

450LLE10MEFC12.5X20
