Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	CXW Series
Standard Package	200
Manufacturer	Rubycon
Series	CXW
Packaging	Bulk
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	800mA @ 120Hz
Ripple Current @ High Frequency	1.2A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450CXW12MEFR8X30	Rubycon, 12µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW100MEFC16X31.5	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW220MEFC18X45	Rubycon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW220MEFC18X50	Rubycon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW18MEFR8X30	Rubycon, 18µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW15MEFR8X35	Rubycon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW120MEFC18X31.5	Rubycon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW10MEFR8X25	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW100MEFC14.5X40	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW150MEFC18X40	Rubycon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW27MEFR8X40	Rubycon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW18MEFR8X40	Rubycon, 18µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View

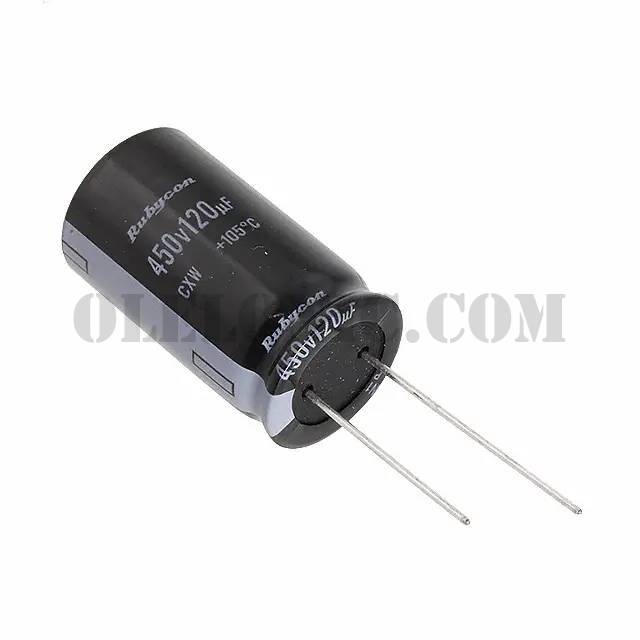

450CXW120MEFC18X31.5

Part Number450CXW120MEFC18X31.5
