Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	CXW Series
Standard Package	500

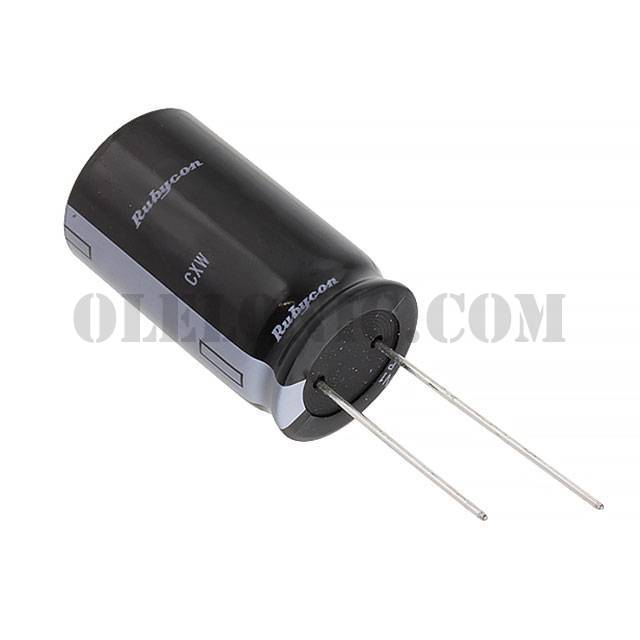

Manufacturer	Rubycon
Series	CXW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	690mA @ 120Hz
Ripple Current @ High Frequency	1.035A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.571" Dia (14.50mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450CXW12MEFR8X30	Rubycon, 12µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW27MEFR8X40	Rubycon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW100MEFC14.5X40	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
420CXW15MEFR8X30	Rubycon, 15µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW220MEFC18X45	Rubycon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW10MEFR8X25	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW120MEFC18X31.5	Rubycon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW18MEFR8X40	Rubycon, 18µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW220MEFC18X50	Rubycon, 220µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
400CXW18MEFR8X30	Rubycon, 18µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
450CXW15MEFR8X35	Rubycon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View
420CXW22MEFR8X40	Rubycon, 22µF 420V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, CXW	View

400CXW100MEFC14.5X40

Part Number400CXW100MEFC14.5X40
