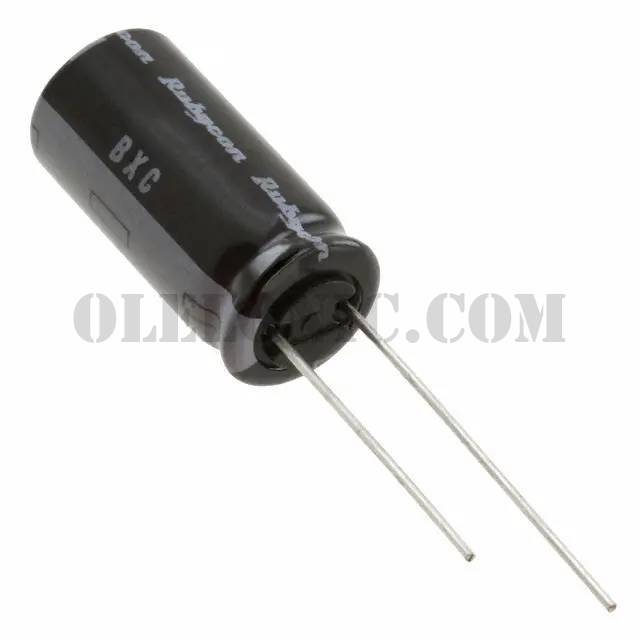

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXC Series
Standard Package	1000
Manufacturer	Rubycon
Series	BXC
Packaging	Bulk
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	99mA @ 120Hz
Ripple Current @ High Frequency	330mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
