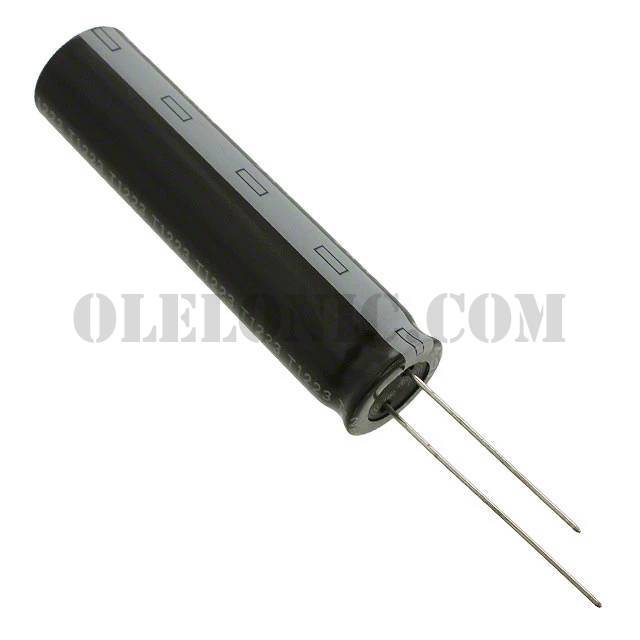

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXW Series
Standard Package	500
Manufacturer	Rubycon
Series	BXW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	760mA @ 120Hz
Ripple Current @ High Frequency	1.71A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	2.047" (52.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450BXW27MEFR14.5X20	Rubycon, 27µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
400BXW150MEFR18X40	Rubycon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW82MEFCG412.5X40	Rubycon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW18MEFC10X20	Rubycon, 18µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
400BXW39MEFR14.5X20	Rubycon, 39µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
450BXW33MEFC12.5X25	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW100MEFC14.5X50	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW33MEFC10X40	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW33MEFR10X40	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW47MEFC12.5X35	Rubycon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW27MEFR12.5X20	Rubycon, 27µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXW	View
450BXW100MEFR16X40	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View

400BXW100MEFC12.5X50

Part Number400BXW100MEFC12.5X50
