Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXW Series
Standard Package	1000
Manufacturer	Rubycon
Series	BXW
Packaging	Bulk
Part Status	Active
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	500mA @ 120Hz
Ripple Current @ High Frequency	1.25A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

400BXW56MEFR12.5X30	Rubycon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW82MEFCG412.5X40	Rubycon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW33MEFR12.5X25	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW56MEFR18X25	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW220MEFC18X50	Rubycon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW56MEFR14.5X35	Rubycon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW82MEFC14.5X40	Rubycon, 82µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
450BXW100MEFC18X30	Rubycon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW82MEFR12.5X40	Rubycon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW120MEFC18X30	Rubycon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
420BXW82MEFR18X25	Rubycon, 82µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View
400BXW82MEFR14.5X35	Rubycon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, BXW	View

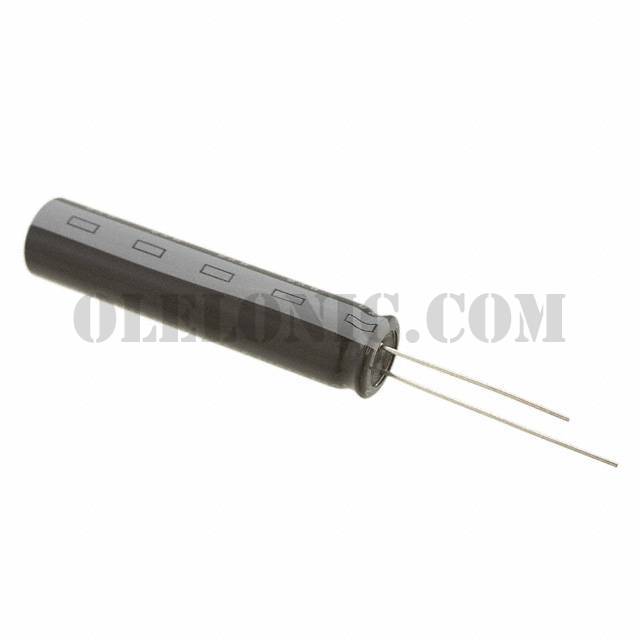

400BXW56MEFC10X45

Part Number400BXW56MEFC10X45
