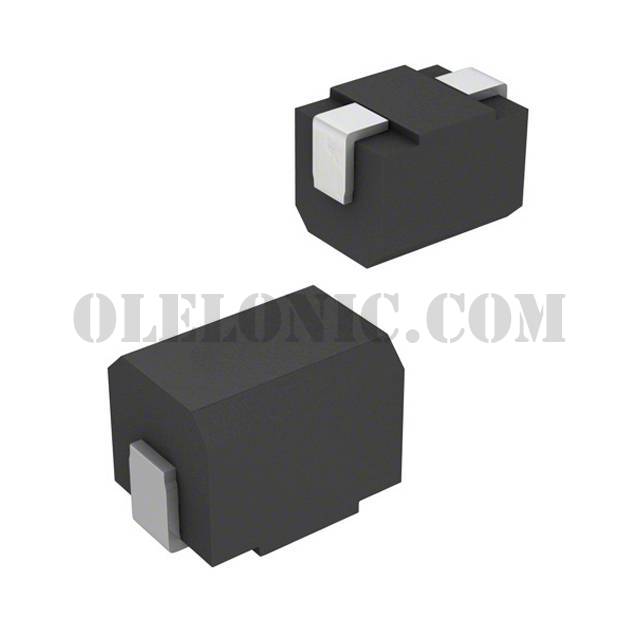

3613CR22M

Part Number3613CR22M

ManufacturerTE Connectivity Passive Product

DescriptionFIXED IND 220NH 665MA 250 MOHM

Datasheet1624094

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220nH Unshielded Inductor 665mA 250mOhm Max 1812 (4532 Metric)

To learn about the specification of 3613CR22M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 3613CR22M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 3613CR22M.
We are offering 3613CR22M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

3613CR22M - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	1624094
Standard Package	1
Manufacturer	TE Connectivity Passive Product
Series	3613C, Sigma Inductors
Packaging	Cut Tape (CT)
Part Status	Active
Type	-
Material - Core	Ferrite
Inductance	220nH
Tolerance	±20%
Current Rating (Amps)	665mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	250mOhm Max
Q @ Freq	40 @ 25.2MHz
Frequency - Self Resonant	200MHz
Ratings	-
Operating Temperature	-30°C ~ 100°C
Inductance Frequency - Test	25.2MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.134" (3.40mm)
