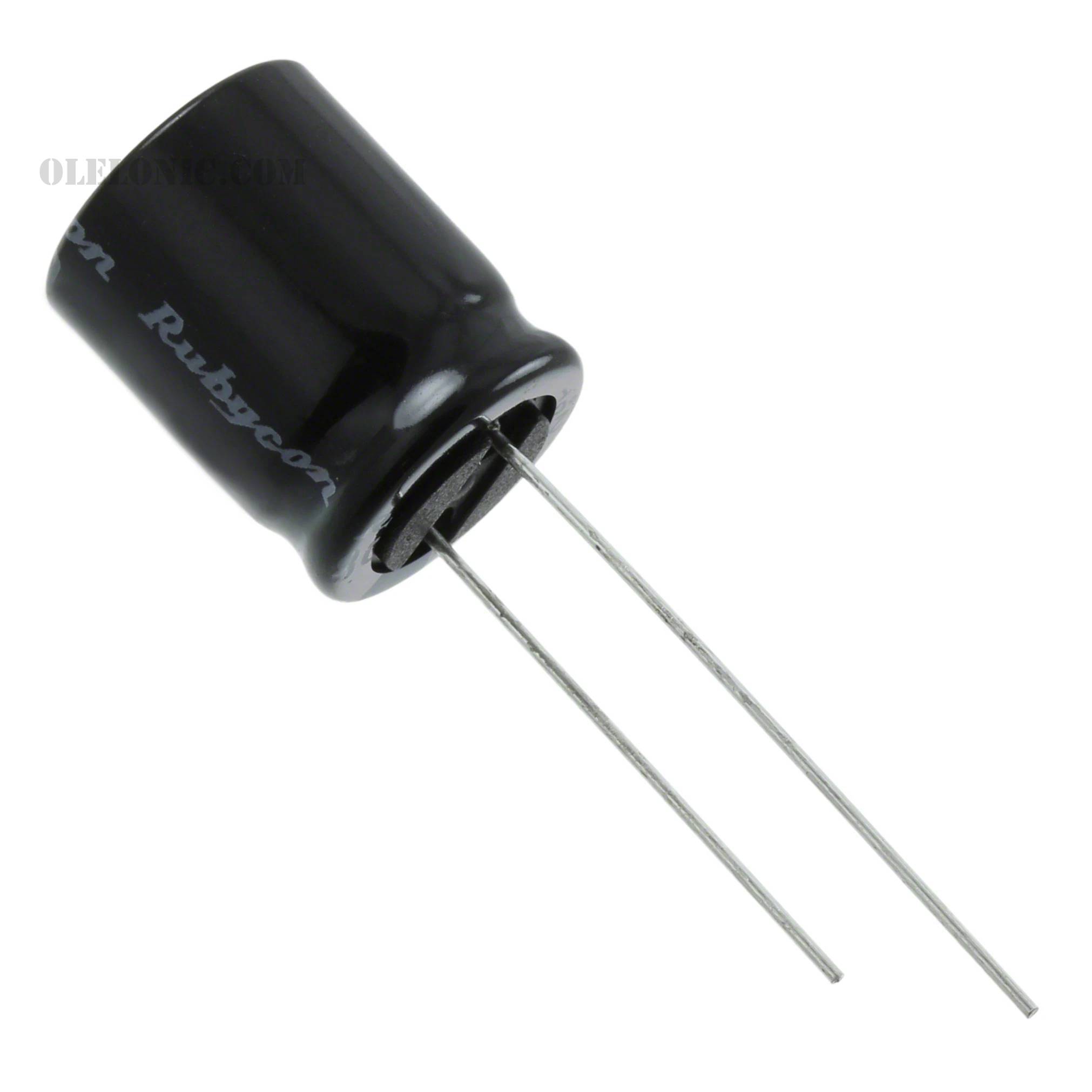

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	1000
Manufacturer	Rubycon
Series	ZLJ
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	875mA @ 120Hz
Ripple Current @ High Frequency	1.75A @ 100kHz
Impedance	62 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

80ZLJ270M12.5X25	Rubycon, 270µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ47M8X16	Rubycon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View
25ZLJ2200MGC16X20	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
35ZLJ1500M12.5X30	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ120MTA8X16	Rubycon, 120µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
25ZLJ2200MGC16X20	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ56MT16.3X11	Rubycon, 56µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, ZLJ	View
50ZLJ390MT810X25	Rubycon, 390µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ33M8X11.5	Rubycon, 33µF 100V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLJ	View
100ZLJ150MG412.5X20	Rubycon, 150µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
10ZLJ1800M10X20	Rubycon, 1800µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ100M8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 9000 Hrs @ 105°C, ZLJ	View

80ZLJ220M12.5X20

Part Number80ZLJ220M12.5X20
