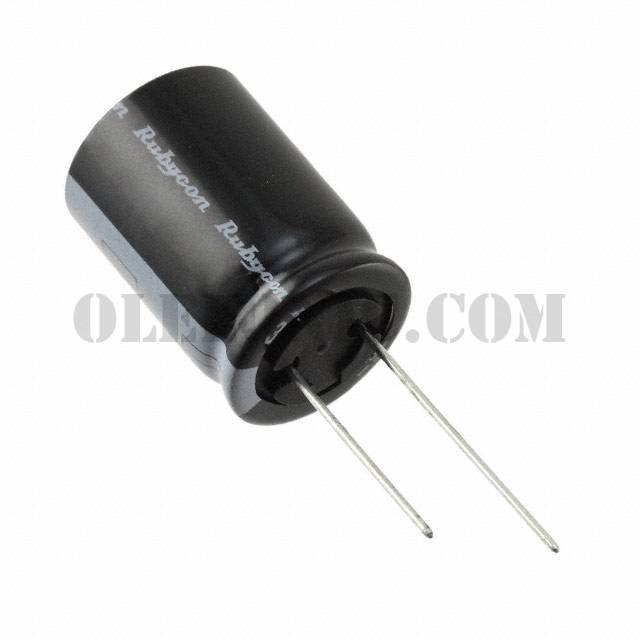

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXH Series
Standard Package	200
Manufacturer	Rubycon
Series	YXH
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.219A @ 120Hz
Ripple Current @ High Frequency	3.14A @ 100kHz
Impedance	19 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25YXH220MEFCTA8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
25YXH470MEFC8X20	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
35YXH2200MEFC18X25	Rubycon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXH	View
25YXH5600MEFC18X40	Rubycon, 5600µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXH	View
25YXH220MEFCTA8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
25YXH220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
25YXH2200MEFC18X20	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXH	View
50YXH100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
35YXH220MEFC10X12.5	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
16YXH470MEFC8X16	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
35YXH3300MEFC18X35.5	Rubycon, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXH	View
63YXH33MEFC6.3X11	Rubycon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXH	View

35YXH2200MEFC18X25

Part Number35YXH2200MEFC18X25
