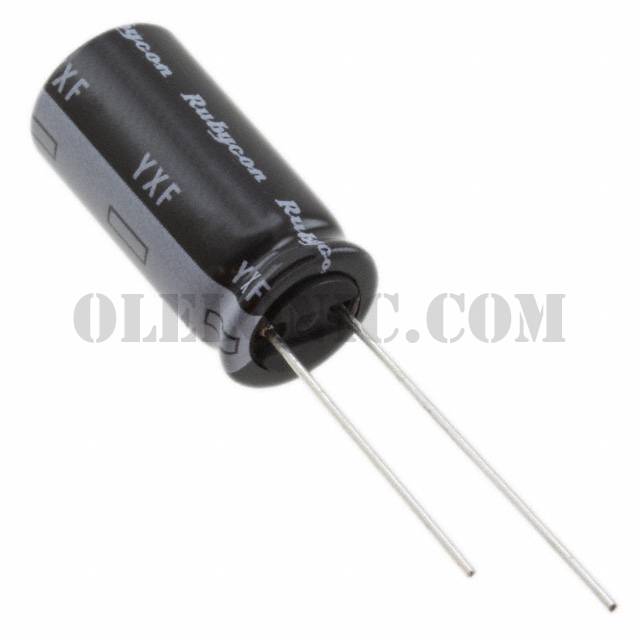

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXF Series
Standard Package	1
Manufacturer	Rubycon
Series	YXF
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	787.5mA @ 120Hz
Ripple Current @ High Frequency	1.05A @ 100kHz
Impedance	78 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

50YXF470MEFCG412.5X20	Rubycon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
25YXF100MEFCTA6.3X11	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
50YXF47MEFCT16.3X11	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
25YXF47MEFCTA5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
16YXF2200MEFC12.5X25	Rubycon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
100YXF100MEFC12.5X20	Rubycon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
50YXF2200MEFC18X35.5	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
50YXF220MEFCT810X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
63YXF470MEFC12.5X25	Rubycon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
100YXF10MEFCT16.3X11	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
10YXF100MEFCT15X11	Rubycon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXF	View
63YXF33MEFC6.3X11	Rubycon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View

35YXF470MEFCT810X20

Part Number35YXF470MEFCT810X20
