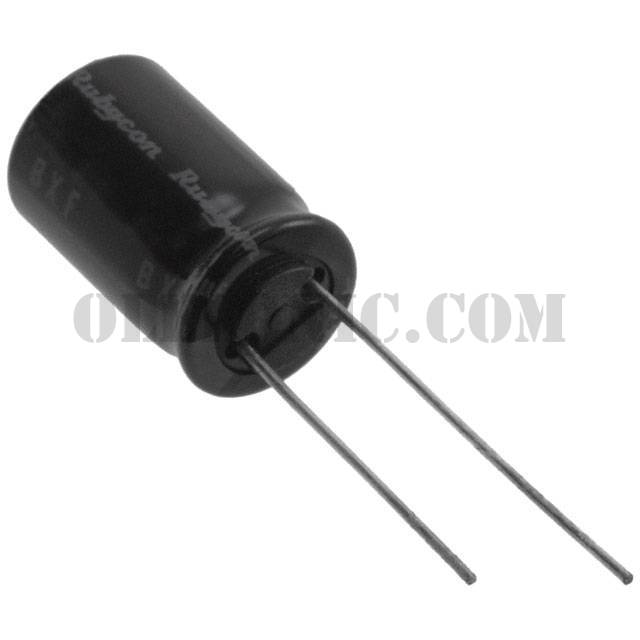

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	BXF Series
Standard Package	500
Manufacturer	Rubycon
Series	BXF
Packaging	Tape & Box (TB)
Part Status	Not For New Designs
Capacitance	18µF
Tolerance	±20%
Voltage - Rated	350V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	135mA @ 120Hz
Ripple Current @ High Frequency	450mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.709" (18.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

400BXF47MCE16X20	Rubycon, 47µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
400BXF18M16X16	Rubycon, 18µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
450BXF10MT810X16	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
350BXF18MT810X16	Rubycon, 18µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
200BXF82M18X16	Rubycon, 82µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
450BXF22MG412.5X20	Rubycon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
350BXF18MT810X16	Rubycon, 18µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
450BXF10MT810X16	Rubycon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
400BXF12MT810X16	Rubycon, 12µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
450BXF22M18X16	Rubycon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
250BXF120M18X20	Rubycon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View
450BXF22M12.5X20	Rubycon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, BXF	View

350BXF18MT810X16

Part Number350BXF18MT810X16
