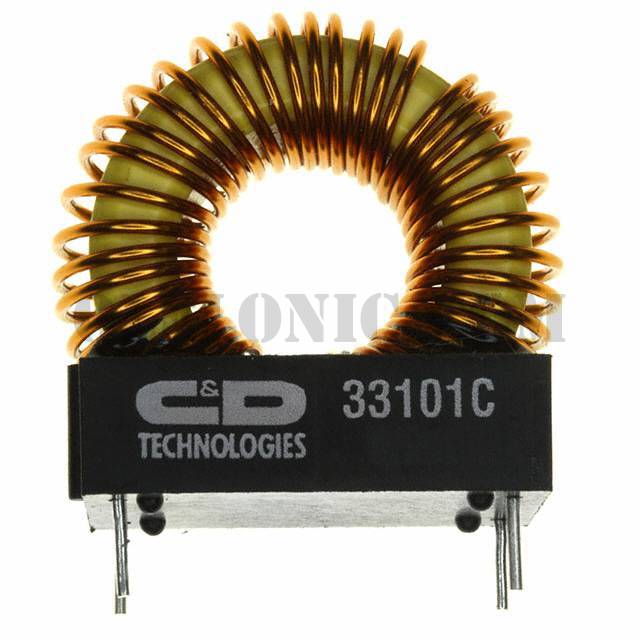

33101C

33101C

Part Number33101C

ManufacturerMurata Power Solutions Inc.

DescriptionFIXED IND 100UH 2.4A 70 MOHM TH

Datasheet3300 Series

Package / CaseRadial, Vertical, 4 Leads (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µH Unshielded Toroidal Inductor 2.4A 70mOhm Max Radial, Vertical, 4 Leads (Open)

To learn about the specification of 33101C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 33101C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 33101C.
We are offering 33101C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

33101C - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	3300 Series
Standard Package	40
Manufacturer	Murata Power Solutions Inc.
Series	3300
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	100µH
Tolerance	±15%
Current Rating (Amps)	2.4A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	70mOhm Max
Q @ Freq	3.9 @ 800kHz
Frequency - Self Resonant	9.7MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	800kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical, 4 Leads (Open)
Supplier Device Package	-
Size / Dimension	1.142" L x 0.642" W (29.00mm x 16.30mm)
Height - Seated (Max)	1.220" (31.00mm)
