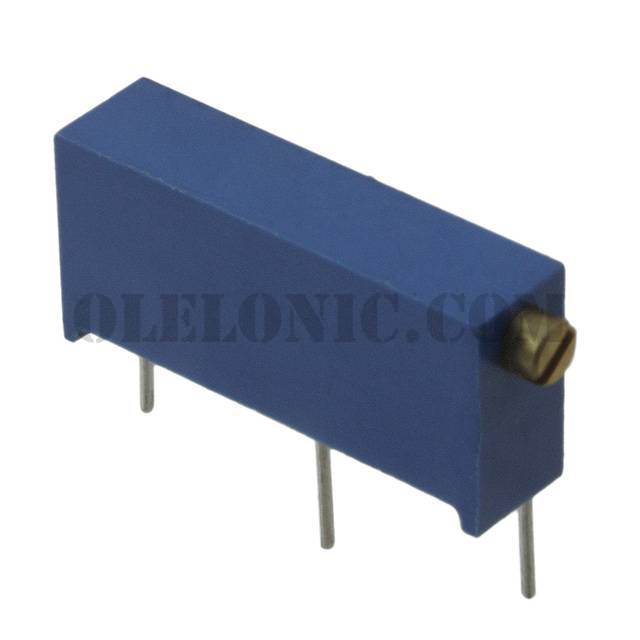

3009P-1-104LF


3009P-1-104LF

Part Number3009P-1-104LF

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

3009P-1-104LF - Product Attributes

Categories Potentiometers, Variable Resistors / Trimmer Potentiometers
Datasheet
Standard Package100
ManufacturerBourns Inc.
SeriesTrimpot® 3009 - Sealed
PackagingTube
Part StatusActive
Resistance100 kOhms
Power (Watts)0.75W, 3/4W
Tolerance±10%
Temperature Coefficient±100ppm/°C
Number of Turns15
Adjustment TypeSide Adjustment
Resistive MaterialCermet
Mounting TypeThrough Hole
Termination StylePC Pins
Size / DimensionRectangular- 0.354" x 0.190" Face x 0.750" L (8.98mm x 4.83mm x 19.05mm)
Base Part Number3009P
