Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

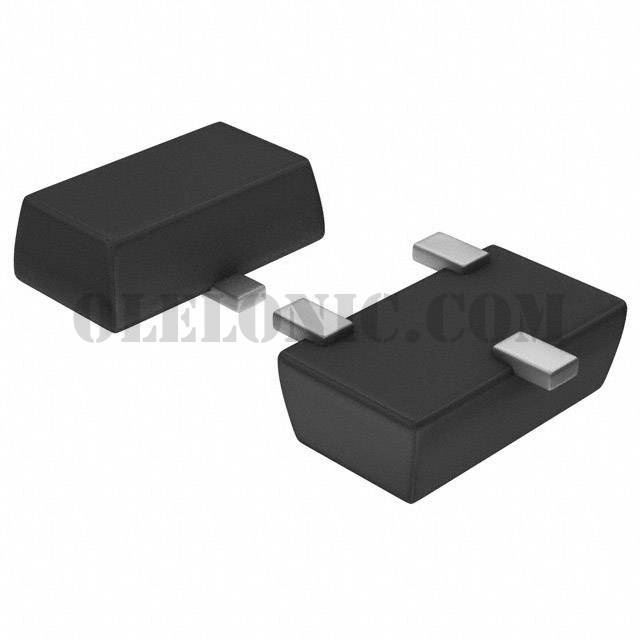

Datasheet	2SC5536A
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	1.7GHz
Noise Figure (dB Typ @ f)	1.8dB @ 150MHz
Gain	16dB
Power - Max	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 3mA, 2V
Current - Collector (Ic) (Max)	50mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-81
Supplier Device Package	3-SSFP
