Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	2SC5095
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	10V
Frequency - Transition	10GHz
Noise Figure (dB Typ @ f)	1.8dB @ 2GHz
Gain	13dB ~ 7dB
Power - Max	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 7mA, 6V
Current - Collector (Ic) (Max)	15mA
Operating Temperature	125°C (TJ)
Mounting Type	Surface Mount

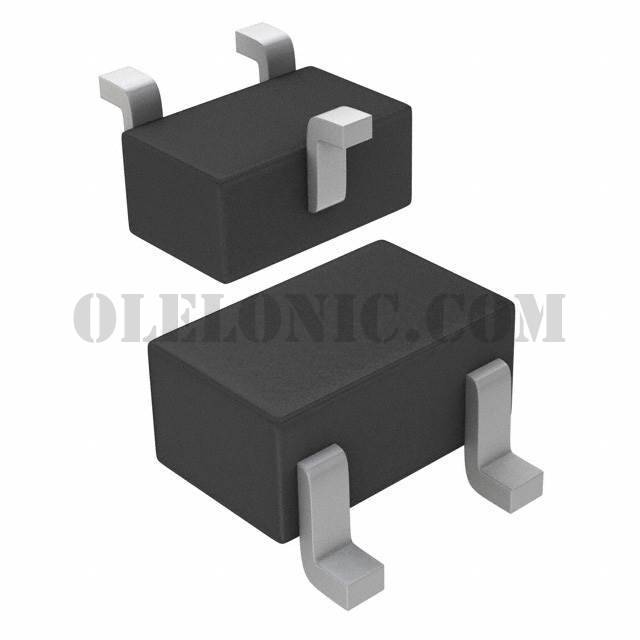

Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70
