Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	2SC5086
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	7GHz
Noise Figure (dB Typ @ f)	1dB @ 500MHz
Gain	-
Power - Max	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 20mA, 10V
Current - Collector (Ic) (Max)	80mA
Operating Temperature	125°C (TJ)
Mounting Type	Surface Mount

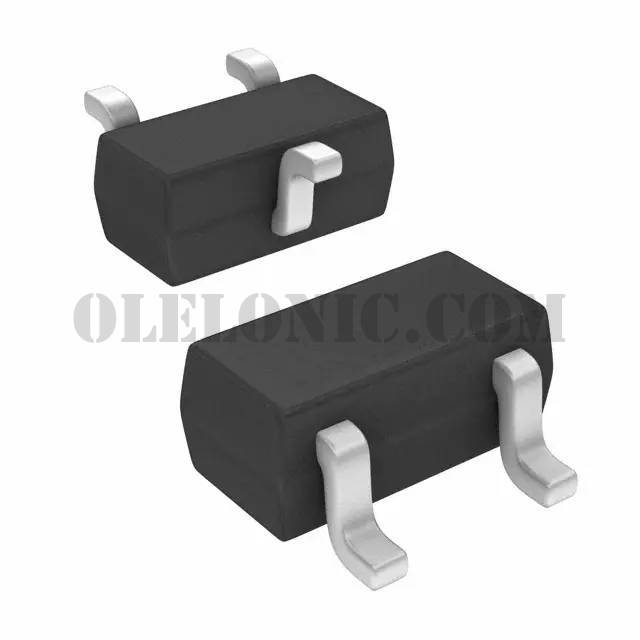

Package / Case	SC-75, SOT-416
Supplier Device Package	SSM
