Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	2A01G - 2A07G
Standard Package	1
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1V @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 600V
Capacitance @ Vr, F	15pF @ 4V, 1MHz
Mounting Type	Through Hole

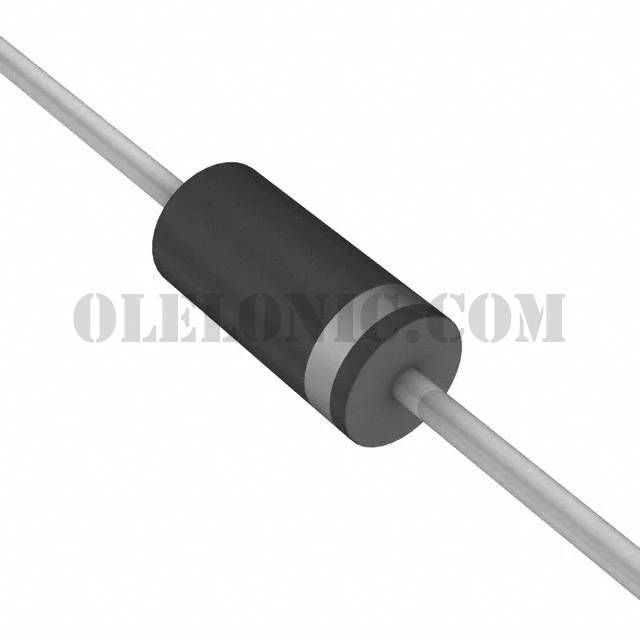

Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-204AC (DO-15)
Operating Temperature - Junction	-55°C ~ 150°C
