Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXH Series
Standard Package	2000
Manufacturer	Rubycon
Series	YXH
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	170mA @ 120Hz
Ripple Current @ High Frequency	340mA @ 100kHz
Impedance	220 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

35YXH220MEFC10X12.5	Rubycon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
50YXH100MEFC8X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
25YXH220MEFCTA8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
25YXH100MEFC6.3X11	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXH	View
25YXH220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
25YXH2200MEFC18X20	Rubycon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXH	View
63YXH33MEFC6.3X11	Rubycon, 33µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXH	View
35YXH3300MEFC18X35.5	Rubycon, 3300µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXH	View
35YXH2200MEFC18X25	Rubycon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXH	View
25YXH220MEFCTA8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
25YXH470MEFC8X20	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View
16YXH470MEFC8X16	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXH	View

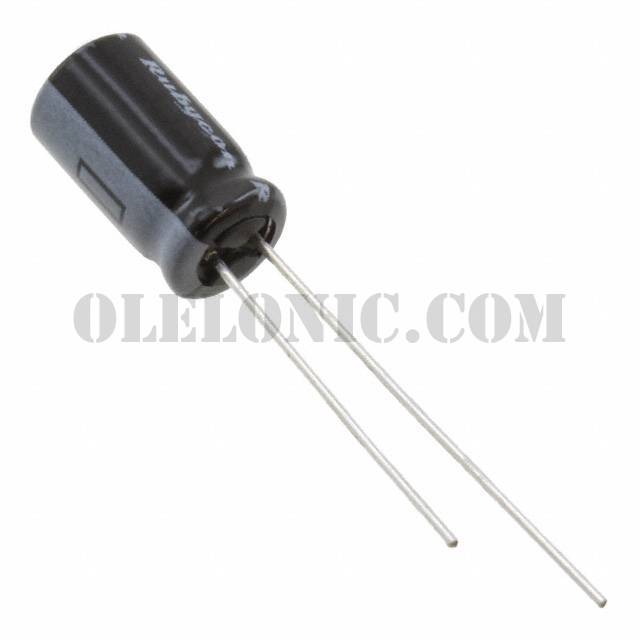

25YXH100MEFC6.3X11

Part Number25YXH100MEFC6.3X11
