Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	WXA Series
Standard Package	1000
Manufacturer	Rubycon
Series	WXA
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	370mA @ 120Hz
Ripple Current @ High Frequency	444mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

450WXA2R2MEFC10X9	Rubycon, 2.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
400WXA4.7MEFCT810X9	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
16WXA470MEFC8X9	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
10WXA1000MEFCT810X9	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
400WXA4.7MEFCT810X9	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
6.3WXA1000MEFCT810X9	Rubycon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
50WXA100MEFCT78X9	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
25WXA470MEFC10X9	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
6.3WXA1000MEFCT810X9	Rubycon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
50WXA100MEFCT78X9	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
400WXA4.7MEFC10X9	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View
25WXA1000MEFC12.5X16	Rubycon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, WXA	View

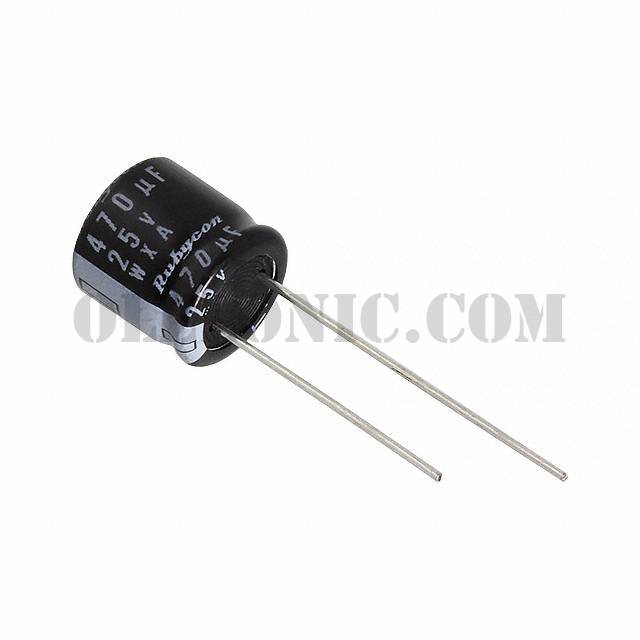

25WXA470MEFC10X9
