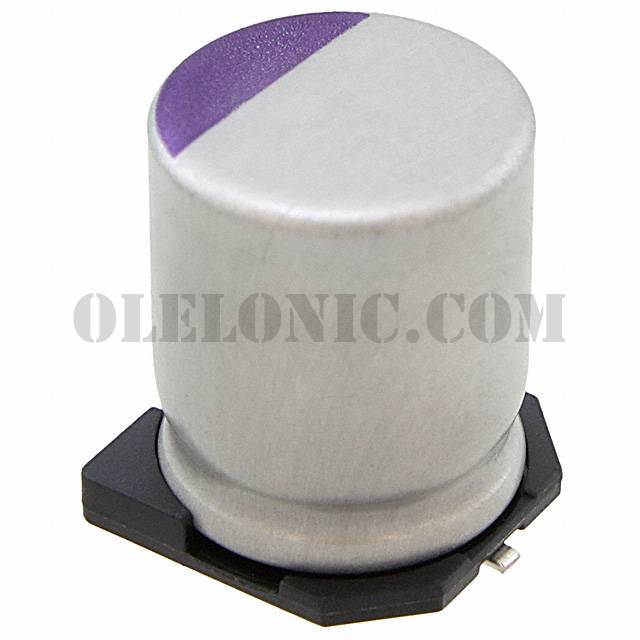

25SVPF330M

Part Number25SVPF330M

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM POLY 330UF 20% 25V SMD

Datasheet25SVPF330M View All Specifications

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description330µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 14mOhm 5000 Hrs @ 105°C

To learn about the specification of 25SVPF330M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 25SVPF330M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 25SVPF330M.
We are offering 25SVPF330M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

25SVPF330M - Product Attributes

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	25SVPF330M View All Specifications
Standard Package	400
Manufacturer	Panasonic Electronic Components
Series	OS-CON™, SVPF
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	14mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	250mA @ 120Hz
Ripple Current @ High Frequency	5A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
