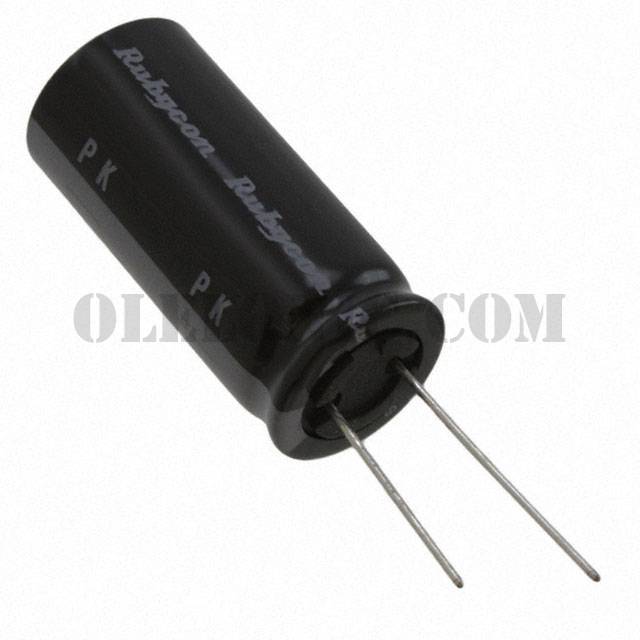

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	PK Series
Standard Package	250
Manufacturer	Rubycon
Series	PK
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10000µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.9A @ 120Hz
Ripple Current @ High Frequency	3.335A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
