Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage MLC Chips
Standard Package	1
Manufacturer	AVX Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10000pF
Tolerance	±10%
Voltage - Rated	2500V (2.5kV)
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose

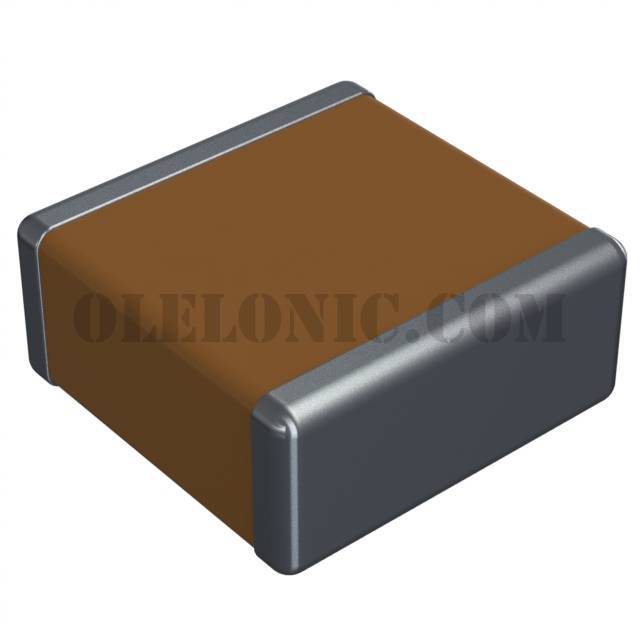

Mounting Type	Surface Mount, MLCC
Package / Case	2225 (5763 Metric)
Size / Dimension	0.225" L x 0.250" W (5.72mm x 6.35mm)
Height - Seated (Max)	-
Thickness (Max)	0.100" (2.54mm)
Lead Spacing	-
Lead Style	-

1812AA102JAT1A	AVX Corporation, 1000pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1808HC102KAT2A	AVX Corporation, 1000pF ±10% 3000V (3kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1808AC103KAT1A	AVX Corporation, 10000pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1808AA561JAT1A	AVX Corporation, 560pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric),	View
1808AC332KAT1A	AVX Corporation, 3300pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1812SA561KAT1A	AVX Corporation, 560pF ±10% 1500V (1.5kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1808WC122KAT2A	AVX Corporation, 1200pF ±10% 2500V (2.5kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1825GC102KAT1A	AVX Corporation, 1000pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1825 (4564 Metric),	View
1808AC103MAT2A	AVX Corporation, 10000pF ±20% 1000V (1kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
2220WC183KAT1A	AVX Corporation, 0.018µF ±10% 2500V (2.5kV) Ceramic Capacitor X7R 2220 (5750 Metric),	View
1825HA221KAT1A	AVX Corporation, 220pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 1825 (4564 Metric),	View
1825WA102KAT1A	AVX Corporation, 1000pF ±10% 2500V (2.5kV) Ceramic Capacitor C0G, NP0 1825 (4564 Metric),	View

2225WC103KAT1A

Part Number2225WC103KAT1A
