Categories	Capacitors / Ceramic Capacitors
Datasheet	High Voltage MLC Chips
Standard Package	1
Manufacturer	AVX Corporation
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.27µF
Tolerance	±10%
Voltage - Rated	630V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	High Voltage
Ratings	-
Applications	General Purpose

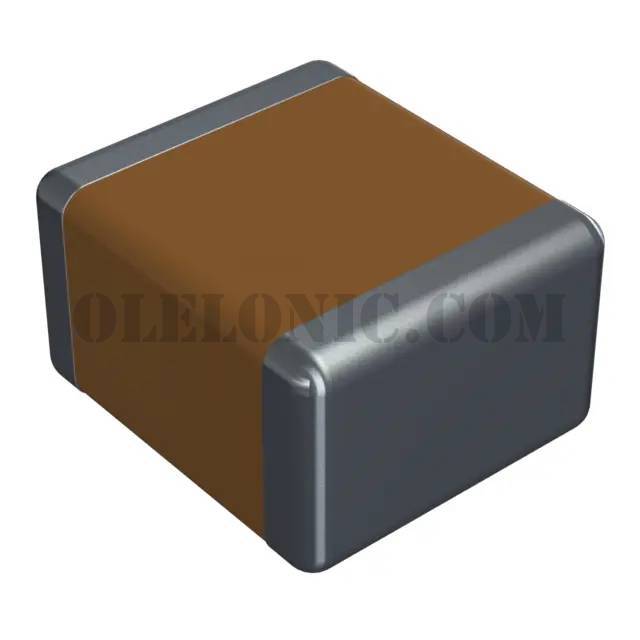

Mounting Type	Surface Mount, MLCC
Package / Case	2220 (5750 Metric)
Size / Dimension	0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max)	-
Thickness (Max)	0.130" (3.30mm)
Lead Spacing	-
Lead Style	-

1812AC102KAT1A	AVX Corporation, 1000pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1812 (4532 Metric),	View
1206GC222KAT1A	AVX Corporation, 2200pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1206 (3216 Metric),	View
1808GC471KAT1A	AVX Corporation, 470pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1808GC152KAT1A	AVX Corporation, 1500pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1812AA102JAT1A	AVX Corporation, 1000pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
2225HC103KAT1A	AVX Corporation, 10000pF ±10% 3000V (3kV) Ceramic Capacitor X7R 2225 (5763 Metric),	View
1206AA220JAT2A	AVX Corporation, 22pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 1206 (3216 Metric),	View
1812AA101KAT1A	AVX Corporation, 100pF ±10% 1000V (1kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1808GA221JAT1A	AVX Corporation, 220pF ±5% 2000V (2kV) Ceramic Capacitor C0G, NP0 1808 (4520 Metric),	View
1812HA331JAT2A	AVX Corporation, 330pF ±5% 3000V (3kV) Ceramic Capacitor C0G, NP0 1812 (4532 Metric),	View
1808AC103KAT1A	AVX Corporation, 10000pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1808 (4520 Metric),	View
1825GC103KAT1A	AVX Corporation, 10000pF ±10% 2000V (2kV) Ceramic Capacitor X7R 1825 (4564 Metric),	View

2220CC274KAT1A

Part Number2220CC274KAT1A
