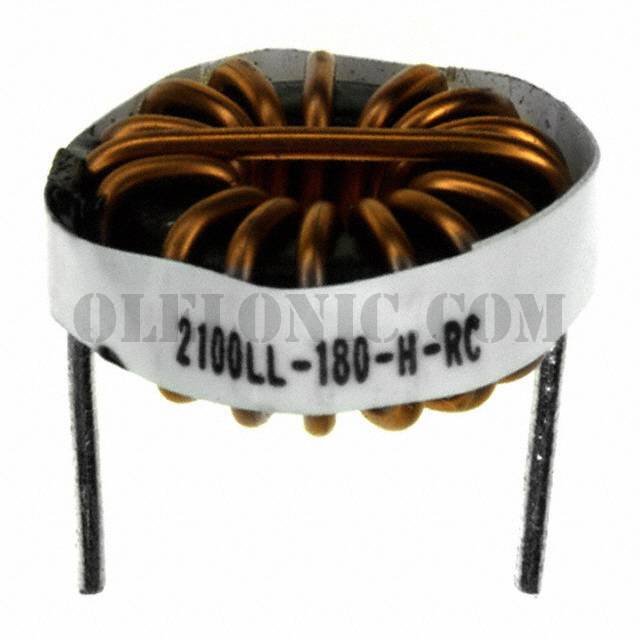

2100LL-180-H-RC


2100LL-180-H-RC

Part Number2100LL-180-H-RC

Manufacturer

Description

Datasheet

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2100LL-180-H-RC - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package72
ManufacturerBourns Inc.
Series2100LL
PackagingBulk
Part StatusActive
TypeToroidal
Material - CoreSendust
Inductance18µH
Tolerance±15%
Current Rating (Amps)10.1A
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)7mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial, Horizontal (Open)
Supplier Device Package-
Size / Dimension0.860" Dia (21.84mm)
Height - Seated (Max)0.450" (11.43mm)
Base Part Number2100LL

2100LL-180-H-RC - Related Products

More >>
2100LL-121-H-RC Bourns Inc., 120µH Shielded Toroidal Inductor 4.1A 39mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-471-H-RC Bourns Inc., 470µH Shielded Toroidal Inductor 2.3A 124mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-391-H-RC Bourns Inc., 390µH Shielded Toroidal Inductor 2.4A 112mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-100-V-RC Bourns Inc., 10µH Shielded Toroidal Inductor 11.4A 5mOhm Max Radial, Vertical (Open), 2100LL View
2100LL-151-H-RC Bourns Inc., 150µH Shielded Toroidal Inductor 3.9A 43mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-390-H-RC Bourns Inc., 39µH Shielded Toroidal Inductor 6.6A 15mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-271-H-RC Bourns Inc., 270µH Shielded Toroidal Inductor 2.7A 93mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-101-H-RC Bourns Inc., 100µH Shielded Toroidal Inductor 4.3A 36mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-330-H-RC Bourns Inc., 33µH Shielded Toroidal Inductor 6.9A 14mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-180-H-RC Bourns Inc., 18µH Shielded Toroidal Inductor 10.1A 7mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-150-H-RC Bourns Inc., 15µH Shielded Toroidal Inductor 10.5A 6mOhm Max Radial, Horizontal (Open), 2100LL View
2100LL-470-H-RC Bourns Inc., 47µH Shielded Toroidal Inductor 5.2A 24mOhm Max Radial, Horizontal (Open), 2100LL View
